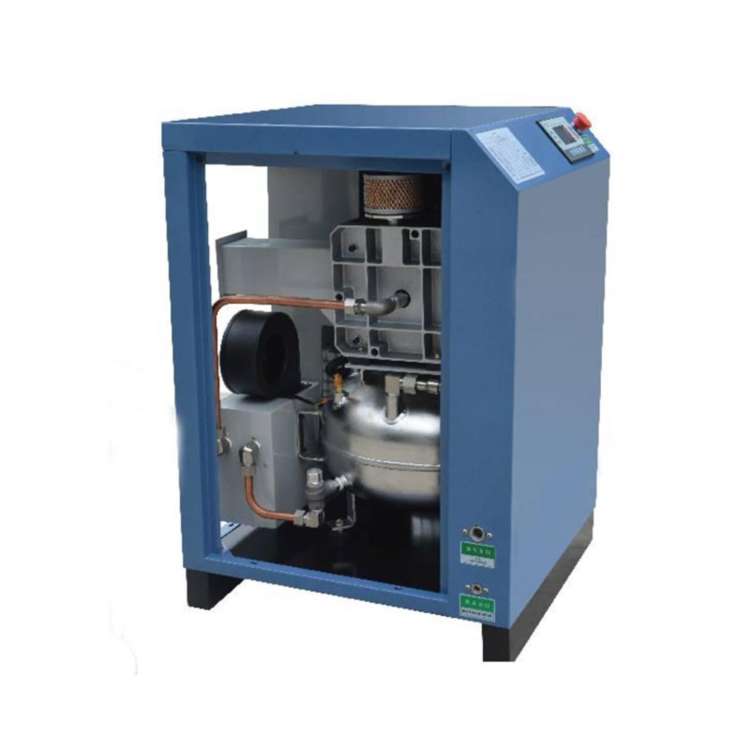

30kw 40hp germany technology stationary Screw type air compressor servo motor compressor (SCR40D)

Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: None
Condition: New
Type: Screw
Configuration: Stationary
Power Source: AC POWER
Lubrication Style: Lubricated
Mute: Yes
Voltage: 380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Dimension(L*W*H): 1600*1000*1360mm
Weight: 840kg
Warranty: 1 Year
Working Pressure: Other
Machinery Test Report: Not Available
Video outgoing-inspection: Not Available
Marketing Type: Other
Warranty of core components: Other
Core Components: Other
Gas Type: Air
Color: Blue
Power(KW): 30
Porsepower(HP): 40
Capacity(m3/min): 727 m3/H
Presssure(BAR): 7
Compressed air outlet: 65-110 m3/MIN
Speed type: Fixed speed
Protection Grade: IP 54
Operating Ambient Temp: 1-45℃ {28.8℉-118℉}
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: None
Warranty: 1 Year
Working Pressure: Other
Machinery Test Report: Not Available
Video outgoing-inspection: Not Available
Marketing Type: Other
Warranty of core components: Other
Core Components: Other
Gas Type: Air
Condition: New
Type: Screw
Configuration: Stationary
Power Source: AC POWER
Lubrication Style: Lubricated
Mute: Yes
Voltage: 380(400,415)V/50Hz/3Phase, 220V/60HZ/3P
Dimension(L*W*H): 1600*1000*1360mm
Weight: 840kg
Color: Blue
Power(KW): 30
Porsepower(HP): 40
Capacity(m3/min): 727 m3/H
Presssure(BAR): 7
Compressed air outlet: 65-110 m3/MIN
Speed type: Fixed speed
Protection Grade: IP 54
Operating Ambient Temp: 1-45℃ {28.8℉-118℉}
Packaging Details: Plywood case or carton case suitable for long sea transportation
Port: Shanghai Port

Model	KW	HP	Capacity(m3/min)	Pressure(BAR)	Dimension	Weight(kg)	Size
SCR10D-7	7.5	10	1.1	7	1053*680*928	250	Rc 1/2
SCR10D-8								1	8
SCR20D-7	15	20	2.4	7	1300*900*1100	530	Rc1
SCR20D-8								2.3	8
SCR20D-10								1.9	10
SCR30D-7	22	30	3.7	7	1380*850*1160	580	Rc1
SCR30D-8								3.6	8
SCR30D-10								3.2	10
SCR40D-7	30	40	5.2	7	1600*1000*1360	840	Rc1 1/2
SCR40D-8								5	8
SCR50D-7	37	50	6.2	7	1600*1000*1360	860	Rc1 1/2
SCR50D-8								6.1	8
SCR50D-10								5.6	10
SCR60D-7	45	60	7.3	7	1850*1000*1360	950	Rc1 1/2
SCR60D-8								7.2	8
SCR60D-10								6.8	10
SCR75D-7	55	75	10.2	7	2150*1350*1500	1720	Rc2
SCR75D-8								9.9	8
SCR75D-10								8.5	10
SCR100D-7	75	100	13.3	7	2150*1350*1500	1860	Rc2
SCR100D-8								13	8
SCR100D-10								11.8	10
